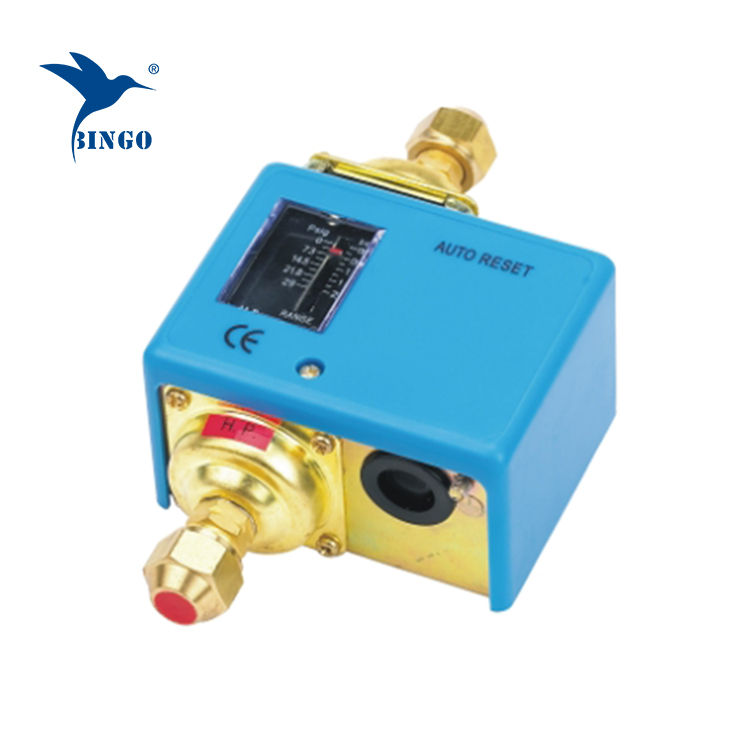

differential low air compressor automatic pressure control switch

Basic Info

---

Condition: New
Customized: Customized
Material: Aluminum Alloy
Port: Ningbo, Shanghai or Appointed
Control Type: Digital
Type: Oil Pressure Differential Controller
Transport Package: Carton
Specification: CE



Pressure Controller-S/D Series Description

---

1.For use with fluorinated refrigerants as well as with air and liquid;(Allowable fluid temp.:-45ºC~+120ºC);
2.Various contact functions available,with SPDT contact mechanism;
3.Renovated micro-swith structure ensures the reliable switch function;
4.Manual-controlled and no use of other instruments to have a function test;
5.Flexible mounting plate suits various kinds of application;
6.1/4,G1/4,capillary or special connetion can be available and please inform us when placing order.

Type	Pressure		Pressure range  (Mpa)		Differential range  (Mpa)
			Min.	Max.	Min.	Max.
S103X	Low		-0.06	0.3	0.035	0.2
S106X	Low		-0.06	0.6	0.06	0.4
S110X	Low		0.1	1	0.1	0.3
S120X	High		0.5	2	0.2	0.5
D306X	Dual L-H	Low side	-0.06	0.6	0.06	0.4
		High side	0.8	3	Fixed 0.4	Fixed 0.4
D606X	Dual L-H	Low side	-0.06	0.6	0.06	0.4
		High side	0.8	3	Fixed 0.4	Fixed 0.4
D306XM	Dual L-H	Low side	-0.06	0.6	0.06	0.4
		High side	0.8	3	pressure Rise-auto reset	pressure Fall-manual reset
D606XM	Dual L-H	Low side	-0.06	0.6	0.06	0.4
		High side	0.8	3	pressure Rise-auto reset	pressure Fall-manual reset
D606XMM	Dual L-H	Low side	-0.06	0.6	pressure Rise-auto reset	pressure Fall-manual reset
		High side	0.8	3	pressure Rise-auto reset	pressure Fall-manual reset

Pressure Controller-HLP Series Description

---

1.For use with fluorinated refrigerants as well as with air and liquid;(Allowable fluid temp.:-45ºC~+120ºC)
2.Various contact functions available,with SPDT contact mechanism;
3.Renovated micro-swith structure ensures the reliable switch function;
4.Manual-controlled and no use of other instruments to have a function test;
5.Flexible mounting plate suits various kinds of application;
6.1/4,G1/4,capillary or special connetion can be available and please inform us when placing order.

Type	Pressure		Pressure range  (Bar)		Differential range  (Mpa)
			Min.	Max.	Min.	Max.
HLP502	Low		0.25	1.5	0.2	1
HLP503	Low		-0.7	3	0.5	1.5
HLP506	Low		-0.7	6	0.5	3
HLP506M	Low		-0.7	6	Reset differential≤1
HLP110	Low		1	10	1	3
HLP516	High		5	16	1	4
HLP520	High		5	24	2	5
HLP530D	High		5	30	5	10
HLP530	High		8	30	Fixed 3-5
HLP530M	High		8	30	Reset differential≥4
HLP830	Dual L-H	Low side	-0.7	6	0.6	4
		High side	8	30	Fixed 3-5
HLP830HM	Dual L-H	Low side	-0.7	6	0.6	4
		High side	8	30	Reset differential≥4
HLP830HLM	Dual L-H	Low side	-0.7	6	Reset differential≤1
		High side	8	30	Reset differential≥4

Pressure Controller - P Series Description

---

1.Pressure contorl is used to protect refrigeration or airconditioning equipment from breathing pressure higheror exhausting lower in system of refrigeration compressor;
2.Pressure contorl is also used in the start & stop of the refrigeration compressors and air-cooled condenser fans;
3.With SPDT contact mechanism, allowable fluid Temp.:-10ºC~+110ºC;
4.Manual-control and no use of other instruments to have a function tests.

Model		Pressure	Low Pressure(LP)
1/4" Flare	1/4" Solder		Adjust Range	Differential
				Pressure
			(bar)	(bar)
PL1A	PL1AS	Low	-0.2 → 7.5	0.7 → 4.0
PL1M	PL1MS	Low	-0.9 → 7.0	Fixed 0.7
PL2A	PL2AS	Low	-0.2 → 5.0	0.4 → 1.5
PH5A	PH5AS	High
PH5M	PH5MS	High
PD15AA	PD15AAS	Dual	-0.2 → 7.5	0.7 → 4.0
PD15AM	PD15AMS	Dual	-0.2 → 7.5	0.7 → 4.0
PD15MM	PD15MMS	Dual	-0.9 → 7.0	Fixed 0.7
PD15AAD	PD15AADS	Dual	-0.2 → 7.5	0.7 → 4.0
PD15AMD	PD15AMDS	Dual	-0.2 → 7.5	0.7 → 4.0
PL35A	PL35AS	Low	-0.2 → 7.5	0.7 → 4.0
PL36A	PL36AS	Low	2 → 14	0.7 → 4.0
PH38A	PH38AS	High
