air water flow pressure switch 24v

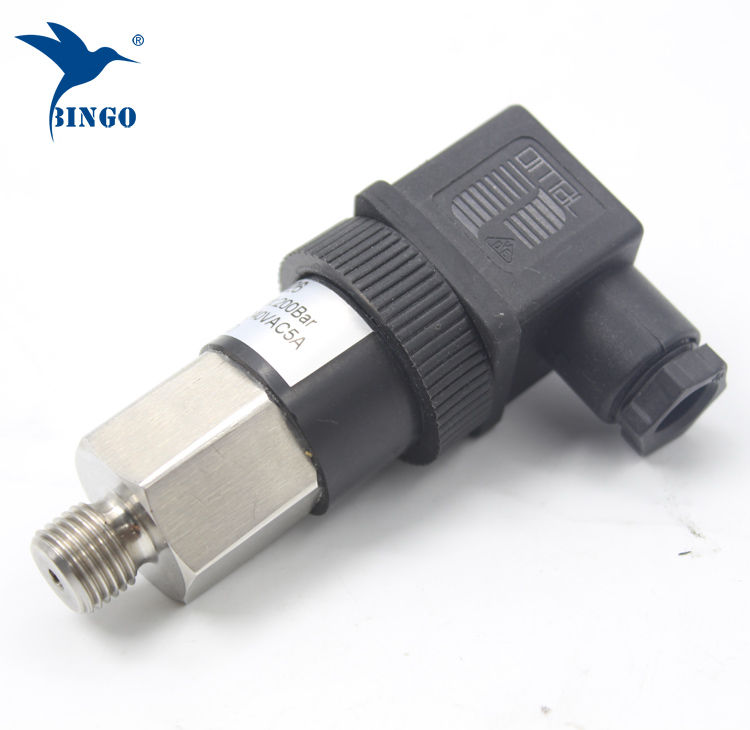

Piston type super high pressure switch for water oil gas

Quick Details

Max. Current: 20A
Max. Voltage: 220V-240V
Max. Working Pressure: 100MPA
Name: Pressure switch, pressure transmitter , water flow pressure switch
Pressure Range: -14.5~750PSI(-0.1Mpa~5.17Mpa)
Bursting pressure: 5000psi
Ambient temperature: -30~+80 Deg C
Electric rating: at 24 Vac, Normal electric capacity 125Vac
Electric rate: at 120 /240Vac, Normal electric capacity 375Vac


1.Adopting Eng. thread quick connector (copper flare connection) or brass tube welding fitting structure,flexibly setting,easy to use and no special need for mounting and fixing.

2.Plugging or wiring connection designed to customers’ choice.

3.SPST connection,normal open or normal close structure designed to customers’ choice.

4.Security and reliability by adopting fusion welding stainless steel pressure inductor and full-tight connection.

5.Any pressure value within -14.5~750PSI(-0.1Mpa~5.17Mpa) or extra high pressure switch (more than 800PSI)can be made based on customers’ requirements.

6.Pre-set pressure parameter before delivery allows direct use without resetting on the customers’ site.


Feature of this pressure switch

1.Easy to use and install.
2.Security and reliability for the air-tight stainless steel sensor.
3.Use flexibly.
4.VDE , UL

Operating Principle & Application

1. The series of pressure switches are used to high,low pressure protection of some refrigeration system,

    like residential,commercial,automobile air-conditioner and ice maker etc.

2.It can also be used to hydraulic pressure and steam pressure control system of all kinds of air compressor,

    equipment or tool and agricultural machine.

Design parameter

1. Working pressure range: -14.5~750PSI(-0.1Mpa~5.17Mpa)

2. Bursting pressure:5000PSI

3. Ambient temperature:-30°C~+80°C

4. System medium temperature:-50°C~+120°C

5. Life cycles under the rated electric current:30,000 times,50,000 times and 100,000 times optional

6. Electric rating:At 24Vac,normal electric capacity:125Vac

                          At120/240Vac,normal electric capacity:375Vac.

The methods of connection

No.Initial connectionTerminal connection



A-two pin plug

Copper pipe (straight)
Copper pipe (bent)
Eng.thread outside
Copper fitting


Cooper pipeTwo wire
Three wire


Copper fittingTwo wire
Three wire



Price, Package and Service

1, it is in this field of producing various hydraulic pressure switch for 13+ years
2, OEM is available, our price is more competitive
3, 7 days replacement and 12 months free repair if quality problem .
4, All goods will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Any questions from you are welcome and will be replied in 24 hours.
7, Package: The goods will be put into the packing box with instructions and certificate of quality first.

Our main products contains pressure switch, melt pressure transducers, melt pressure transmitters, Industrial pressure transmitter, melt pressure gauge, Homogenizer pressure gauges, automotive/air pressure sensors, Intelligent digital indicator, level transducer, temperature transducer, Rupture disk, and etc. more than 80 series and 500 models products.

, , , , , , , , , , , , , , , , , , , , , , ,
