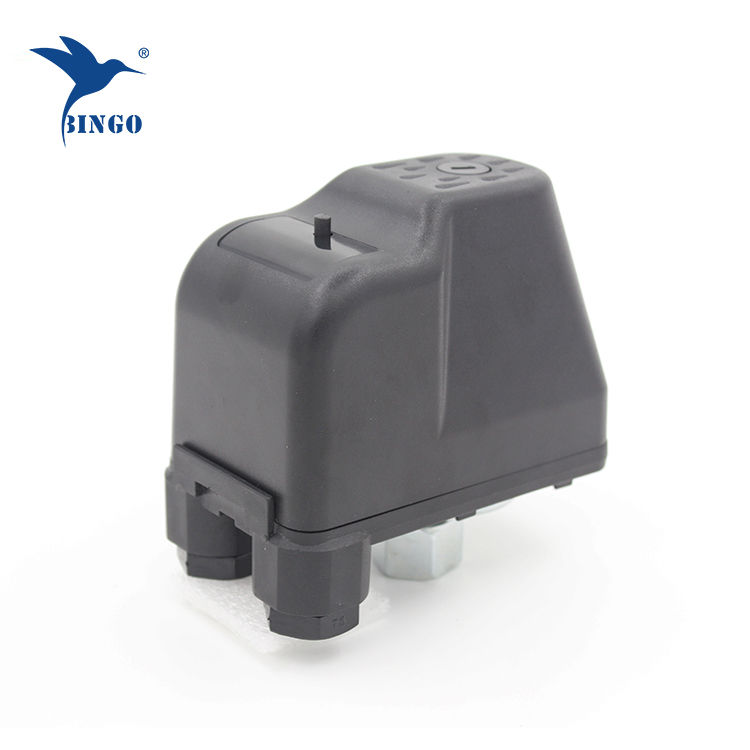

good quality pressure switch air compressor differential pressure switch

Quick Details

---

Max. Current: 25A
Max. Voltage: 480V
Max. Working Pressure: 3~700PSI
Item Name: Pressure Switch for Air Compressor Differential Pressure Switch
YK-3.5/3.0: black
Automatic Reset: Manual Reset
temperature control: AC240V
Pressure Range: 0.02MPa~5.5MPa
Applied Temperature: -30°C~+100°C
Dielectric: Terminal to terminal:AC600V,10S Terminal to case:AC1500V,1min
Useful life: Above 100,000times
Contact Mold: single-pole single throw
characteristic of voltage: accordance with the requirement of customer



Application

---

General
our series pressure controller (also called pressure switch) is a more advanced mini controller in the world and is researched and designed by using special material and process on the basis of absorbing and digesting technical advantages of same kinds of product both at home and abroad. The properties of the product are reliable and its installation and application are very convenient. It is wide used for heat pump, oil pump, gas pump, refrigeration set of air-condition and equipment where needs to adjust medium pressure itself and pressure protection.

Principle of Work
When the lift of pressure to be controlled in the system is over the set value, the pressure in the system will drive mini butterfly metallic film and produce instant displacement and push inch switch to off (or on) and take place over voltage protection.When the pressure of medium to be ontrolled is low than the set value, the mini film sheet will be jumped towards opposite direction and restore its original state and inch switch is off (or on) and take place over voltage protection.

Technology

---

#	Name	The technique request
1	The pressure value sets the scope	3-667PSl / 0.02-4.6Mpa
2	The pressure value business trip scope	1.45-14.5PSl / 0.01-0.1Mpa
3	Touch some form	NC (H)    NO (L)
4	Contact capacity	AC240V 3A   AC120V 6A
5	Contact resistance	« 50mΩ
6	Insulate the electric resistance	» 100mΩ Connect the line carries with a » 100mΩ
7	The anti-electricity strength	The AC1500V last the 1 min clock and did not broke through and gleam
8	Biggest blow up the pressure	At the « 5000PSl of («34.5Mpa) blows up the pressure under the 1min clock did not burst the phenomenon
9	Air tightness	The 4.8Mpa/ 1 min no leakage
10	Adapt the temperature	The environment temperature  -30 ~ +80°C Life the quality temperature -50 ~ +120°C
