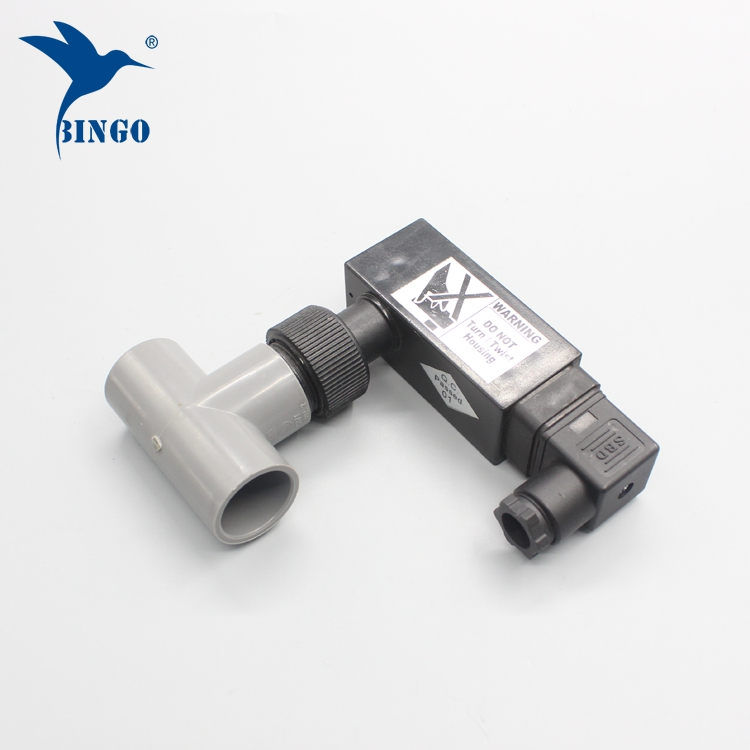

g3/4″ DN20 paddle type flow switch

DN20 Paddle Type Flow Switch

Basic Info

Model NO.: FS-M-PD014F
Certification: UL
Media Type: Liquid
Voltage: 250V
Wiring Connection: DIN 43650 Connector/Attached Cable
Trademark: Bingo
Specification: IP65
IP Rating: IP50
Type: Paddle Type Flow Switch
Principle: Eddy Current
Max. Current: 5A
Pressure: 25bar(Can Be Custom-Made)
Transport Package: Carton
Origin: China


Product Description

We are first class retailer, wholesaler, and exporter for Paddle Type Flow Switch FS-M-PD014F in China since 2009. Quick response, fast delivery.
Paddle Type Flow Switch FS-M-PD014F Description:
FS-M-PD014F flow switch consist of the core, reset spring, wrought copper or polycarbon shell and sensors. Housing is made by the H58 wrought brass, and the material of magnetic cores is NdFeB permanent magnet, the sensor magnetic switch is power components. Influent and effluent-side interfaces are standard G1 / 2 "pipe thread.



1. Detecting the pipeline whether the liquid flows and the amount achieve the required output or not, at the same time outputing a signal on-off state by switch electric contact.
2. Equipment system by detecting whether the signal from the switch on the control current, determine the working conditions of the piping system, and give the control or operation mode or measurements;
3. Illustration, central air conditioning water circulation pipe network systems, fire systems' automatic sprinkler system, certain types of liquid circulation cooling system piping, are generally used the water flow differential pressure switch, which is used to detect the flow of liquid situation.
4. Water flow differential pressure switch can real-time monitor the liquid flow in the pipeline and provide the output of the switch value, and 6 LED real-time display fluid velocity state


Technical Characteristics

VoltageNo status indicator lamp: max voltage 250V,
Has status indicator lamp: 24VDC± 10%
Max. current5A
Wiring connectionDIN 43650 connector/attached cable
OutputSPDT micro switch (factory set N/O) and optional status indicator
Pressure25bar(can be custom-made)
Average pressure loss0.01 bar (Max. flow)
Working temperature-20-90º C
Protection classIP65
MaterialHousing: nickel-plated brass
Paddle: stainless steel
Seal: PTFE
Electrical shell: ABS
, , , , , ,
