paddle type flow switch ss material

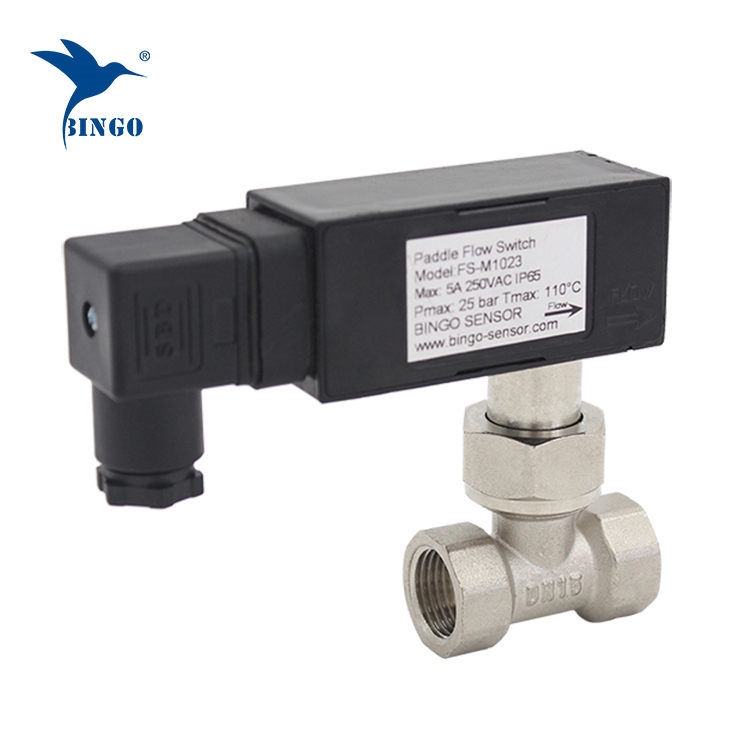

Paddle Type Flow Switch in Ss Material

Basic Info


Certification: UL
Media Type: Liquid
Pipeline Connecting Thread: G3/8
Cable Interface Type: Nickel-Plated Brass
Transport Package: Carton
Origin: China
IP Rating: IP54
Type: Differential Pressure Flow Switch
Principle: Eddy Current
Fluid Housing Material: Nickel-Plated Brass

Product Description


We are first class retailer, wholesaler, and exporter for Paddle Type Flow Switch FS-M-PD014A in China since 2009. Quick response, fast delivery.
Paddle Type Flow Switch FS-M-PD014A Description:
FS-M-PD014A overcome the drawbacks of large pressure drop of the target type flow switch on the market, low hydrostatic drive and low shell protection grade, for the changes in pipeline liquid, gas and flowing solids flow or drying up have a reliable protection, is a update product of common target flow switch.

Working Principle


For more stringent of water flow must be recalibrated the protection flow values in the test bench which has installed flowmeter, for flow less demanding needs multimeter resistance measuring two lines on-off of water flow control switch.
First use the hand to simulate flow to push the baffle, whether has on-off change in multimeter, the force with hand pushed the baffle amount to the size of the water flow, adjusted using inner hexagon carefully tighten the M3 set screws, if excessive screw may lead the magnetic switch glass tube breakage consequently failure.

Characteristic


1. The flow control switch mounting position is usually installed in the pump water exported equipment and outlet piping, not to be installed in the pump suction inlet piping, as it may easy make the pump not function properly, flow switch can not be opened, too. This point need to pay special attention.
2. The flow control switch permit horizontal (plastic part on top) and vertical mounting
3. Install the flow switch needs to pay attention to the direction of flow in the pipeline, which must be consistent with the direction of the arrow in the upper part of the flow switch on the copper shell, otherwise flow switch does not work.
4. Electrical output and flow adjustment
5. Flow control switch SPDT passive normally open or normally closed dry contact output can customized.
, , ,
