water pump flow sensor, water flow sensor

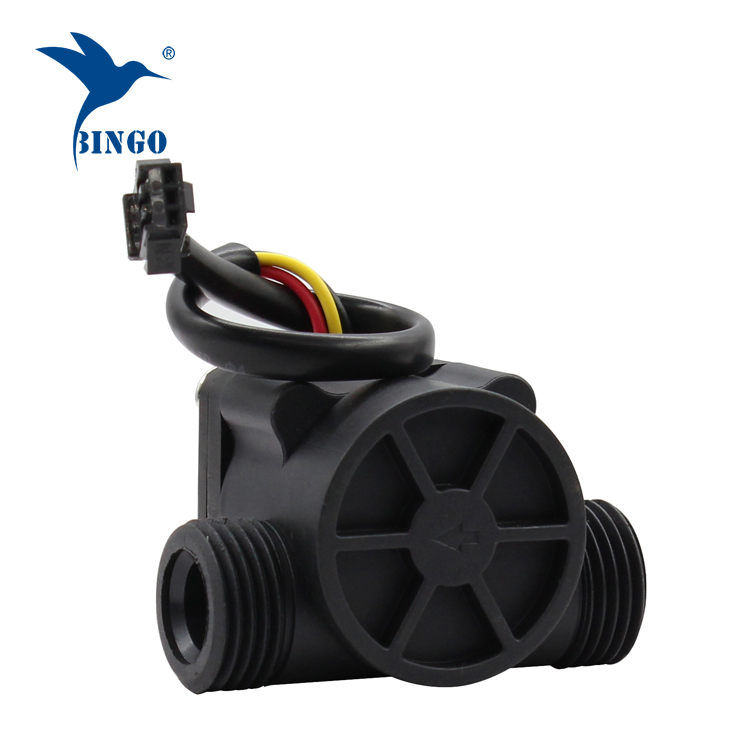

Black PP material water flow sensor pipes

Quick Details

Media Type: Liquid
Operating Temperature: -40~+80℃
Connection: G1/2''
Operate Temperature: -10-80C
Precision: 0.5-30L/min
Flow Pulse: F=18Q±5% Q=L/min
Mounting Position: Vertical or Horizontal
Output Pulse Duty Cycle: 50%±10%

Product description

The main water flow sensor by copper body and plastic forming, water flow rotor components, steady flow components and hall components. It into water dispenser, coffee machine and household appliances the water used for measuring the water flow.

When water flows through the rotor components, magnetic rotor rotating, and speed along with the flow of a linear change. Hall element output corresponding pulse signal feedback to the controller, the size of the flow of water by controller judgment, adjust proportional valve control of electric current.

Water flow sensor fundamentally solve the differential water-gas valve flap type high pressure and start water valve easy misoperation appear dry and shortcomings.It has reflected sensitive, long service life, action quick, safe and reliable, joins convenient traffic advantages such as the start low, deeply the general user affection.



Technical data

Suffering Pressure1.75MPa
Operate Temperature -40~+150°C
Min insulation Resistance100M ohm
Precision0.5-25L/min
Flow PulseF=18Q±5%  Q=L/min
Mounting PositionVertical or Horizontal
Output Pulse Duty Cycle50%±10%
Max Output Pulse Voltage>DC4.7V(input voltage DC5V)
Min Output Pulse Voltage<DC0.5V(input voltage DC5V)
Electrical Life1X107(5Vdc,10mA)
Body MaterialPA66+30%Glass



Buying guides

Before the quotation, we need to know the following information:

1.Connection size and flow rate

Connection size will affect the price.

And we are not sure if the connection can meet your request of flow rate;

2.Temperature and pressure.

We can give you the suggestions of material accordingly.

Maybe a cheaper one is enough.

3.Quantity.

We will give you the discount according to the quantity.

Our Services

1. Delivery time is 5~7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
